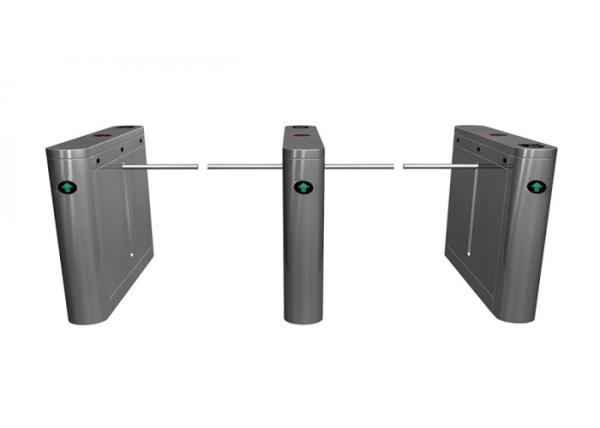

24V DC brushless motor dual lanes automatic arm drop turnstile for
Introduction of Arm drop Turnstile:
Automatic arm drop turnstile is a kind of high-tech product used
for the intelligent management for the pedestrian access control.It
is the upgraded product of Tripod Turnstile and Flap Barrier.
Similar to Flap Barrier, it is of fine processing,complete function
and high grade.
Applications of Arm drop Turnstile:
Sinomatic drop arm turnstile gate is mainly applied in the metro
station, wharf, subway station, bus station, factories, office
building , hotel, clubs, school, library, supermarket and
institution that need intelligent access management.
Features of Arm drop Turnstile:
- Fault detection and alarm functions, easy to use and maintenance.
- The running status can be programmed and controlled with the
built-in keyboard on the main board.
- Mechanical antipinch function. If the gate meets resistance in the
reset process, motors will stop working automatically within the
prescribed time and reset again later.
- Anti-breakthrough function. The gate is locked automatically until
opening signal received.
- Automatic reset function. Should the user fail to pass within the
prescribed time (default time is 5 seconds), the system will cancel
the authority of the current user automatically.
- Gate can be set as normally open or normally closed.
- Can be used with variety of access control devices: IC / ID card
readers, bar codes, fingerprints, etc. (Access controller needed).
- Direction can be set as single-direction or bi-direction.
- Gate auto opens when power off and auto close when power on,
complying with fire safety requirements.
- Alarm function, in case of illegal intrusion and reverse intrusion,
Specifications of Arm drop Turnstile:
AC220±10%V 50Hz/AC110±10% 60Hz
Access device input voltage
Dry contact or 12V electrical level signal
or > 100ms 12V impulse signal, driving current > 10mA
DC 24V (brush motor)
Max flow rate
25 to 30 person per minute
Flap opening / closing time
Reset time when power on
Cases of Arm drop Turnstile:
