Semi Automatic Controlled Access Turnstiles , Heavy Duty Security Turnstile Gate

SHENZHEN SINOMATIC TECHNOLOGY CO., LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Semi Automatic Controlled Access Turnstiles , Heavy Duty Security Turnstile Gate

Brand Name : SINOMATIC

Model Number : SN-FHT03

Certification : CE/ ISO

Place of Origin : Shenzhen, China.

MOQ : Sample order accepted

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100pcs per month

Delivery Time : 5-10 working days after payment received

Packaging Details : Carton/Plywood box/Pallet

Lane : 3 lanes

Power consumption : 40W

Access device input : Access device input voltage

Control circuit : DC 24V

Working humidity : 0~95%RH

Arm Diameter : 38mm

Product life : 5 million times

Rotating degree : 90 degree or 120 degree

Contact Now

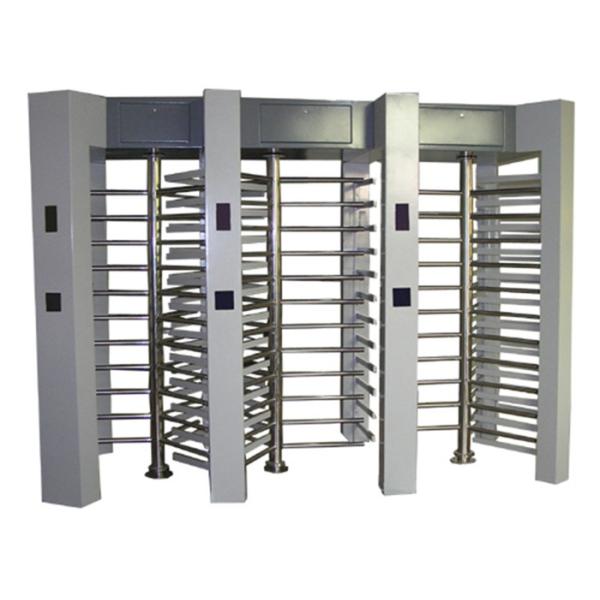

Three lanes safety hotel lobby heavy duty semi-automatic full high turnstile

Introduction of Full Height Turnstile:

Our series full height turnstile product range consists of several models that all offer excellent security control and can be installed indoors or outdoors depending on their type. Our full height security turnstiles, suitable for controlling unsupervised areas, are available in a wide range of finishes and configurations to suit almost all buildings and environments.

Applications of Full Height Turnstile:

The full height turnstile series are widely used in entrance/exit passsages of indoor and outdoor with tent:

Facoty, Airport, railway station, metro station, bus station, sports center, prison, hotel, hospital, fitness center and so on.

Features of Full Height Turnstile:

  • Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.

  • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
  • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
  • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
  • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
  • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
  • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.

Specifications of Tripod Turnstile Gate:

Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Power consumption

40W

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor

No motor

Max flow rate

25 to 30 person per minute

Arm length

500mm to 600mm

Working temperature

-20°C~60°C

Cases of Full Height Turnstile:

Semi Automatic Controlled Access Turnstiles , Heavy Duty Security Turnstile Gate

Why choose us:

1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
