Hydraulic Buffer Anti-Tailgating 304 Stainless Steel Tripod Turnstile Gate with 1.2mm Thickness for Indoor/Outdoor Use and Bi-directional Pass

Brand Name : SINOMATIC

Model Number : SN-TT01

Certification : CE/ ISO

Place of Origin : Shenzhen, China.

MOQ : Sample order accepted

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,,Alipay,Paypal

Supply Ability : 3,000 pcs per month

Delivery Time : 5-10 working days after payment received

Packaging Details : Carton/Plywood box/Pallet

Material : 304 Stainless Steel,thickness 1.2mm

Warranty : 1 Year

Arm length : 510mm

Size : 480*280*980mm

Passing speed : 35 Person/min

Power supply : 110~240 V(AC); DC24V

Working environment : Indoor/Outdoor (with a tent over)

Pass : Single or Bi-directional pass

Contact Now

Product description
Tripod turnstile: It is mainly used for the management of the entrance and exit of the passage. It has the characteristics of fast opening, safety and convenience, etc. It is the ideal management and guidance equipment for pedestrians with high-frequency entrance and exit. Widely used in airports, stations, terminals, attractions, parks, shopping malls, office buildings, pedestrian walkways and other places.

Sinomatic semi-automatic tripod turnstile is a high-end tripod turnstile built for reliability and long life — strong stainless-steel body, smooth arm rotation, and smart safety design that keeps entry secure and user-friendly.

Key Features
  • Reliable Security: Three-arm design provides robust access control for high-traffic areas like subways and stadiums
  • Cost-Effective: Affordable security solution for schools, public buildings, and retail stores
  • High Throughput: Processes approximately 35 people per minute to maintain efficient pedestrian flow
  • Durable Construction: 304 stainless steel housing withstands heavy use and harsh weather conditions
  • System Integration: Compatible with RFID, biometric, and ticketing systems for flexible security solutions
Technical Specifications
Power Supply Input AC220/110V (± 10%)
Power Voltage 24 V DC
Power Consumption During Idle AC: 0.07 Amp DC: 0.16 Amp
Power Consumption During Operation AC: 0.02 Amp DC: 0.72 Amp
Passage Width 60 cm
Response Time 0.3 second
Pass Speed 30 persons per minute
Housing/Arm Material 304 Stainless Steel
Internal Mechanism Mild Steel
Arm Disc Alloy chromed
Working Temperature -25℃ to 60℃
Main Functions and Features
  • Compact, cost-effective entrance solution with 304 stainless steel housing
  • IP44 rated for indoor/outdoor installation

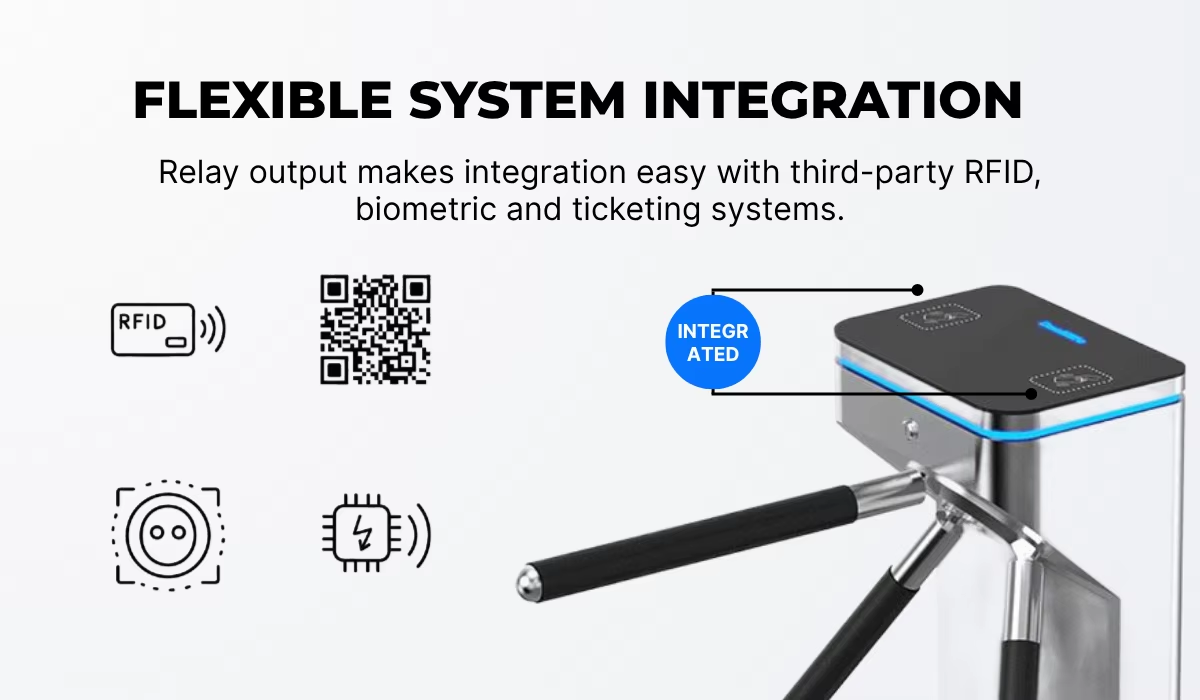

  • Standard relay output for integration with third-party systems (RFID, fingerprint, face recognition, etc.)
  • Semi-automatic operation requiring slight push when access is granted

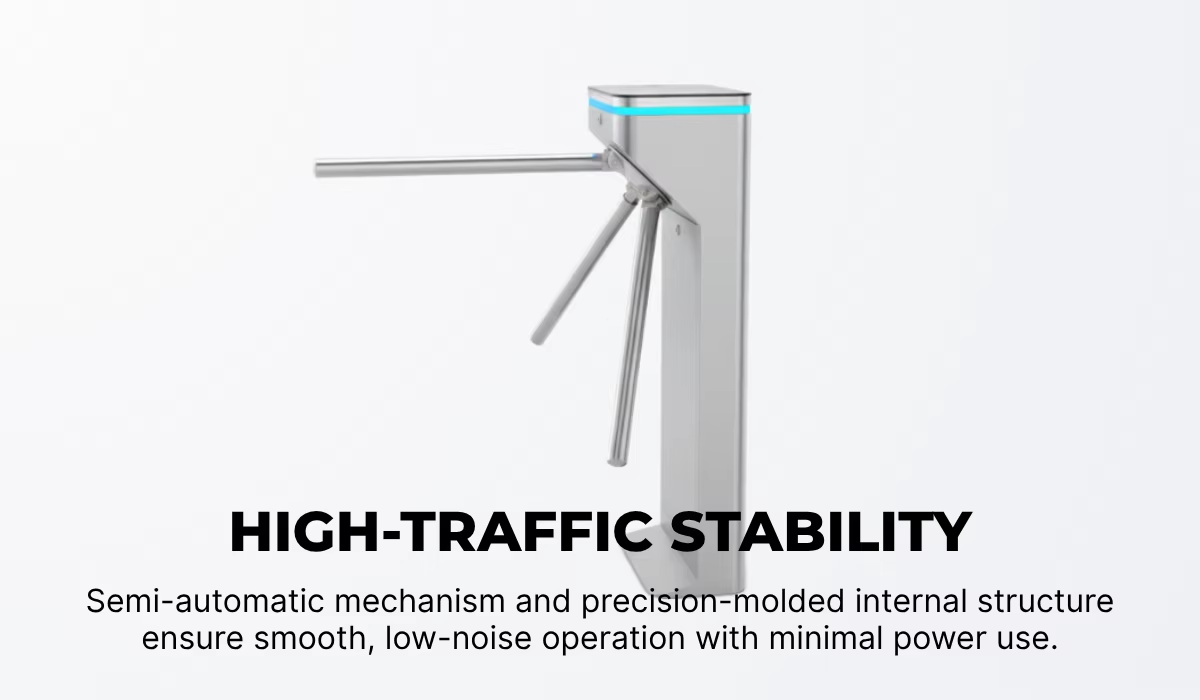

  • Precision mold mechanism for smooth, quiet operation with low power consumption
  • Single-person passage design with optional bi-directional functionality
  • LED directional indicator light on housing top
  • Automatic clock function (default 5s lock if not passed)
  • Fire safety compliant - arms drop for free passage during power failure

Hydraulic Buffer Anti-Tailgating 304 Stainless Steel Tripod Turnstile Gate with 1.2mm Thickness for Indoor/Outdoor Use and Bi-directional Pass

Hydraulic Buffer Anti-Tailgating 304 Stainless Steel Tripod Turnstile Gate with 1.2mm Thickness for Indoor/Outdoor Use and Bi-directional Pass
Customer Value
Long-Lasting Design Strong stainless steel housing built to last for years, even in busy entrances.
Low Maintenance Uses a simple mechanical system instead of a motor — fewer parts mean fewer repairs.
Flexible Direction Setup Can be set for one-way or both-way entry depending on your site needs.
Smooth Arm Rotation The arm moves naturally and adjusts itself — no jerky motion or manual resets.
Surge Protection Built-in safety circuit protects the system from electrical surges.
Anti-Tailgating System Locks after one person passes to stop anyone from sneaking in right behind.
Safe During Power Loss When power goes out, the arm drops automatically so people can exit freely.
Easy for Everyone Arm rotates with a gentle push — even children or elderly people can pass easily.
LED Direction Indicator Lights show clear entry and exit direction for smooth flow.
Tamper-Proof Design Internal parts are key-locked for added security and protection.
